SZ Viewer: read DTC for Suzuki

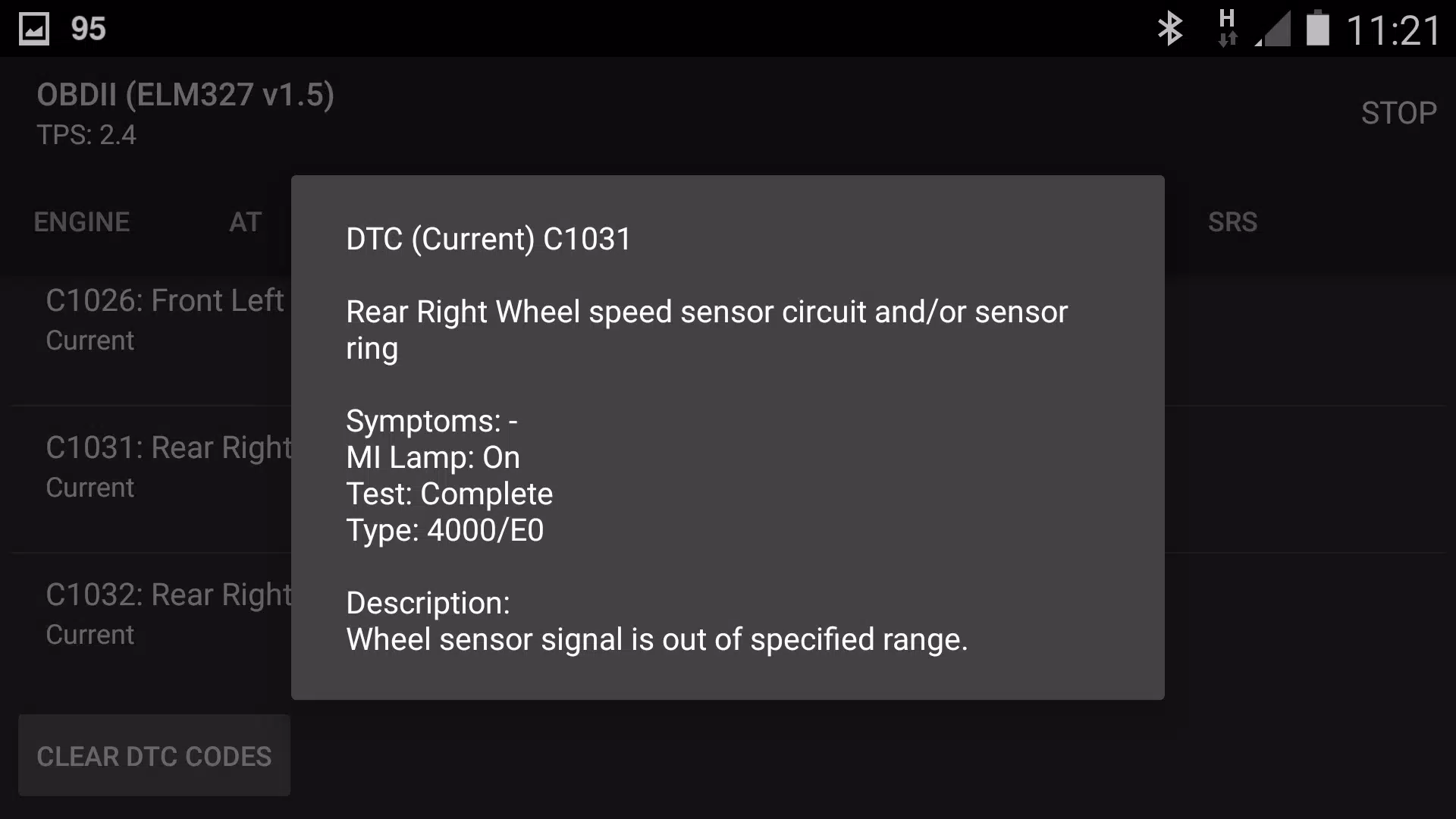

If you're a Suzuki vehicle owner looking to diagnose and manage Diagnostic Trouble Codes (DTCs), the SZ Viewer A1 application is your go-to tool. This specialized software is designed to interact with Suzuki control modules using both specific protocols like K-Line and CAN bus, as well as standard OBDII protocols. With SZ Viewer A1, you can not only read but also reset DTC codes, including extended and historical ones, across a wide range of Suzuki control modules.

One of the standout features of SZ Viewer A1 is its support for Japanese Domestic Market (JDM) Suzuki vehicles. Even if these cars do not support OBDII protocols, SZ Viewer A1 can still access their control modules effectively.

To utilize SZ Viewer A1, you'll need an ELM327 adapter with Bluetooth or Wi-Fi connectivity, specifically version 1.3 or later. Be cautious, as counterfeit ELM327 adapters, often labeled as v2.1 or some v1.5 versions, are not compatible. They lack the necessary ELM327 commands to interface correctly with the application.

It's important to note that SZ Viewer A1 does not support the older SDL protocol used in pre-2000 model year Suzuki vehicles. This is due to physical incompatibility with the ELM327 adapter, which uses different voltage levels and pin configurations.

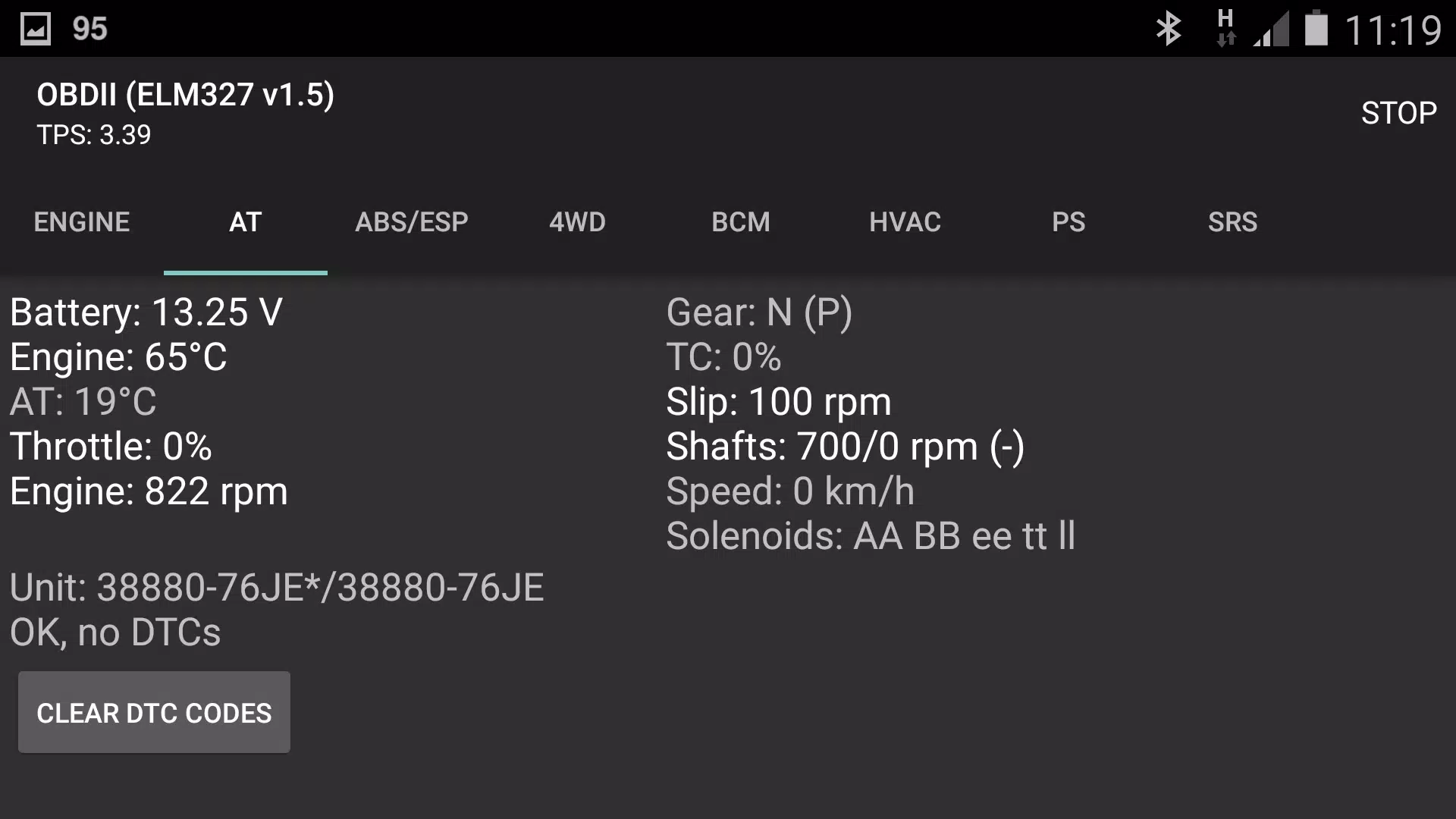

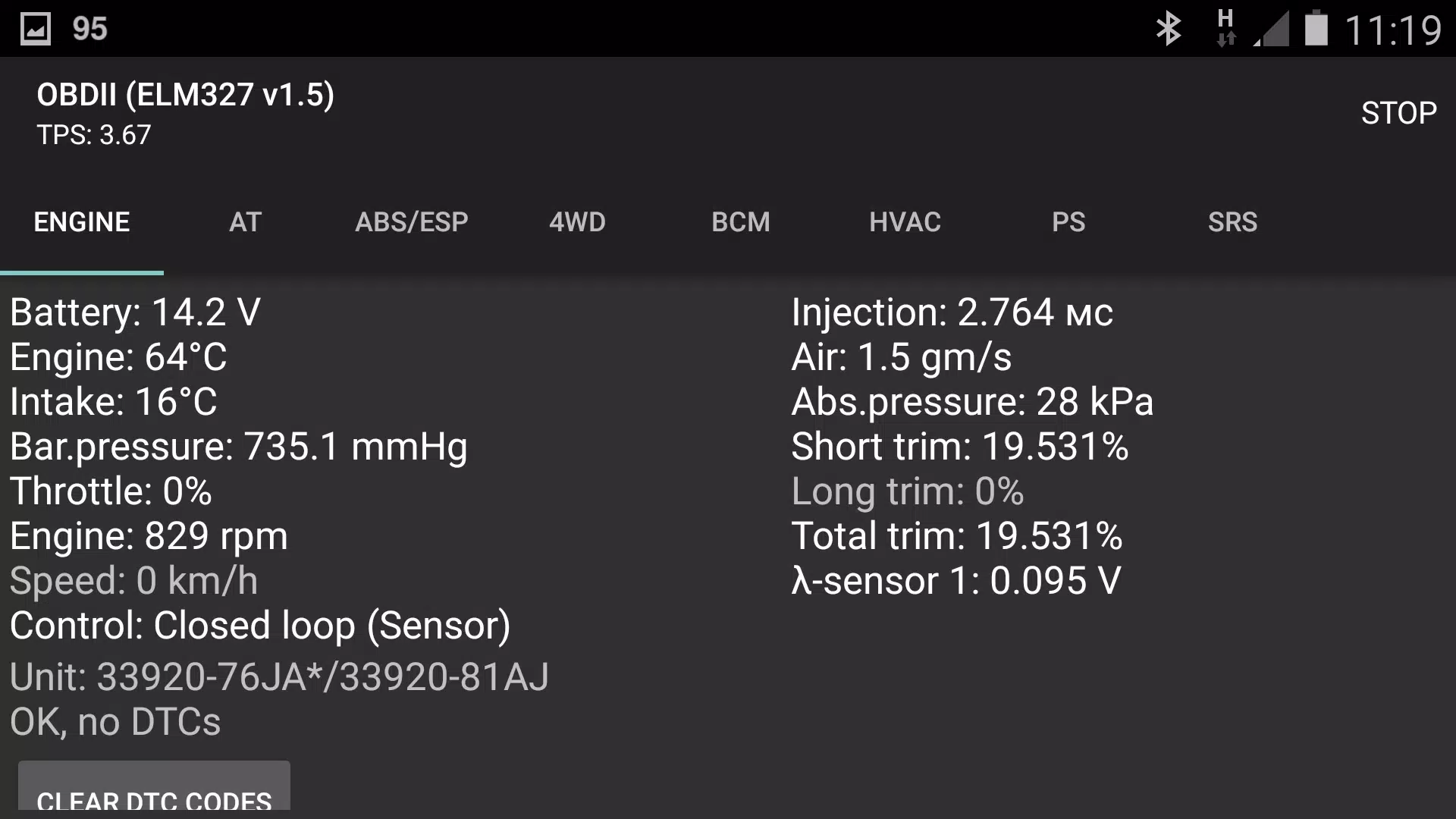

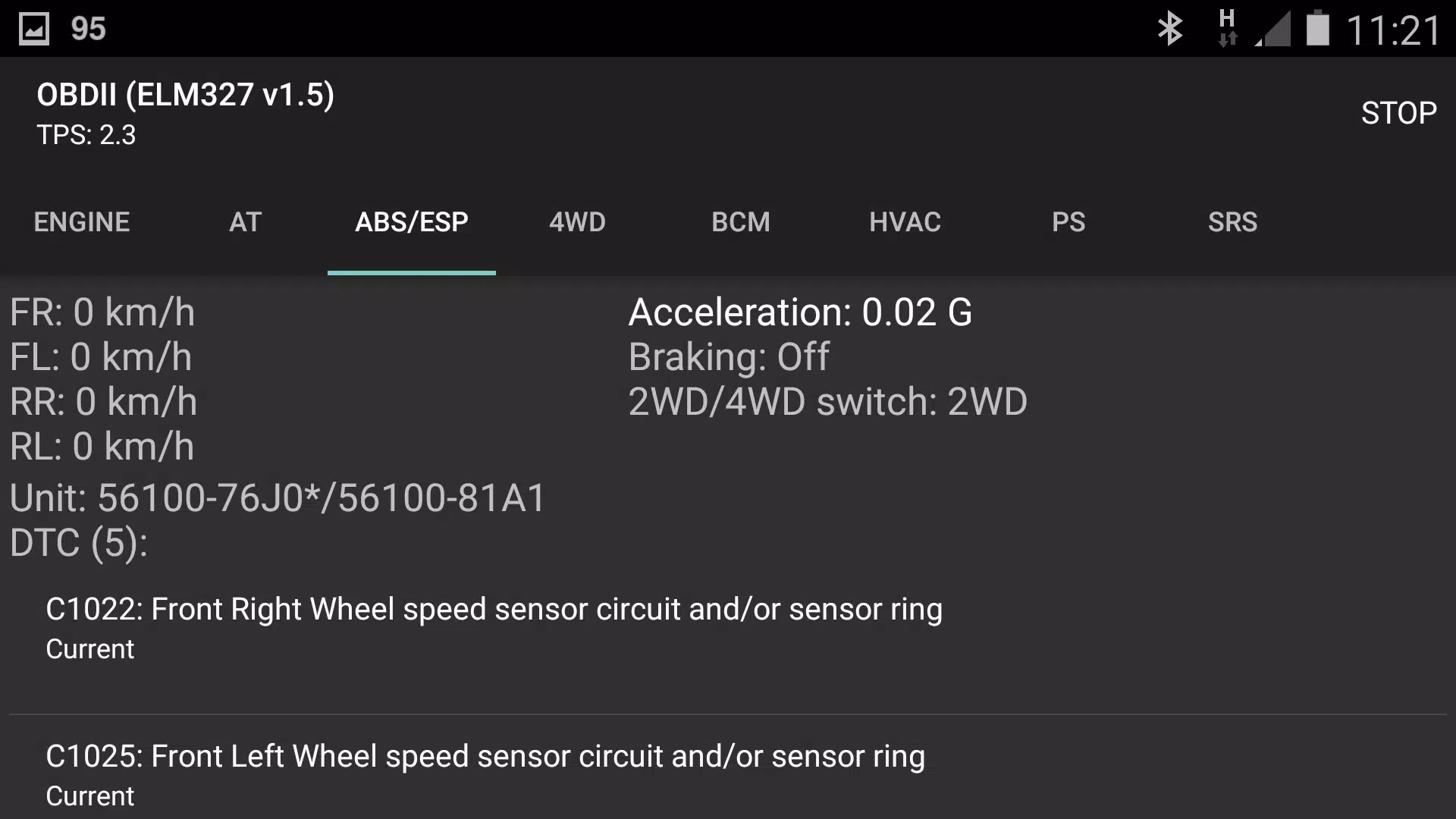

With SZ Viewer A1, you can delve into a variety of control modules such as powertrain, engine, AT/CVT, ABS/ESP, SRS, AC/HVAC, BCM, PS, EMCD/4WD/AHL, and TPMS. Keep in mind that not every vehicle will have all these modules available for diagnostics.

A common issue you might encounter is the HVAC module displaying DTCs B1504 or B150A. These codes may appear due to insufficient illumination of the sunload sensor during the diagnostic procedure and are not indicative of a malfunction in the sunload sensor itself.
